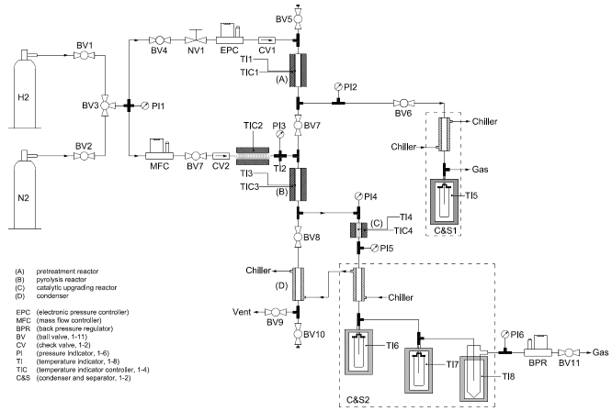

Catalytic (hydro-)Pyrolysis Unit - CPU

        This patented unit offers a solution for pyrolysis of solid and liquid renewable feedstock (either waste or model compound) using a heterogeneous catalyst via an in-situ or ex-situ approach under N2 at an atmospheric pressure (catalytic pyrolysis) or under H2 at a high pressure (catalytic hydro-pyrolysis).

Specifications

        Feedstock: Solid (10-50 g/h, (semi-)continuous) or liquid (10-100 g/h, continuous)

        Gas: N2 or H2 (20-100 ml/h)

        Catalyst: Solid (particle size of 300-1000 μm, 5-20 g)

        Pretreatment reactor: 25-250 °C

        Pyrolysis/Catalysis reactor: 400-600 °C

        Reaction pressure: 1-60 bar

        Condensation: 3-Stage condensation (from -40 °C to 5 °C)

* A customized CPU can be designed and offered upon request.

Patent No. NL2031021

(PCT application date: 21 Feb 2023)



Contact Us Product sheet

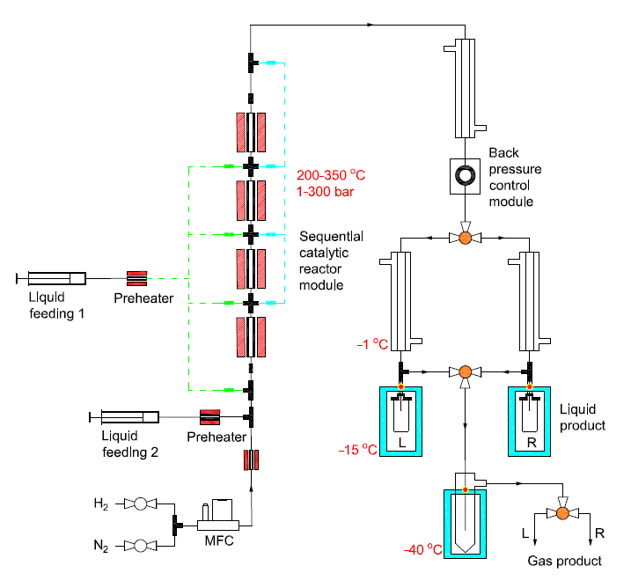

(co-)HydroTreating - (co-)HT

        This unit

Specifications

    Feedstock:

    Gas:

    Catalyst:

    Pretreatment reactor:

    Pyrolysis/Catalysis reactor:

    Reaction pressure:

    Condensation:

* A customized (co-)HT can be designed and offered upon request.
